Risk scenarios

In its classic version, PILAR associates ICT threats with system assets, threats that affect ICT dimensions (confidentiality, integrity, etc.) and calculates the mitigating effect of ICT security measures to estimate residual risk.

The same approach can be applied in wider scenarios. In what follows we will apply it to the legal aspects (legal risk) of the assets that have value because of their personal character.

The approach is to associate threats on the legal aspects of the processing of personal data and apply measures that address such threats.

The value is determined by the valuation of the asset in the privacy dimension. The threat must be identified together with its impact on the value of the asset and the estimated probability of occurrence (ARO). The measures that are adopted reduce the risk. All this within the unified framework for estimating potential and residual risks.

Top toolbar

Risk

new

to create a new row

edit

to modify a row

delete

to delete a row

Export

CSV

table to CSV for Excel

XML

table to XML

Bottom toolbar

	Saves current project either in a file, or in database (according to its source).
	OK. The changes are saved, and the screen is closed.
	CANCEL. The changes are undone, and the screen is closed.
	HELP. Jumps into this help files.

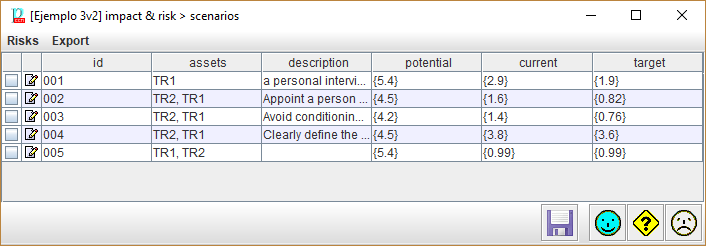

Table

	Allows you to select some rows; click to select or forget; with the shift key you can select a range
	Click to edit the row
id	Row identifier: it should be a unique identifier, without duplicates
assets	One or more assets involved in the described scenario.
description	A textual description. It shall describe both the threat scenario and the measures to counter it.
phases	As many columns as projects phases, starting with the potential phase (inherent risk). It shows the residual risk in each phase.

You may SHIFT-UP to move one or more selected scenarios one step upwards.

You may SHIFT-DOWN to move one or more selected scenarios one step downwards.
